Alpha  |  SKU: SPZ050110

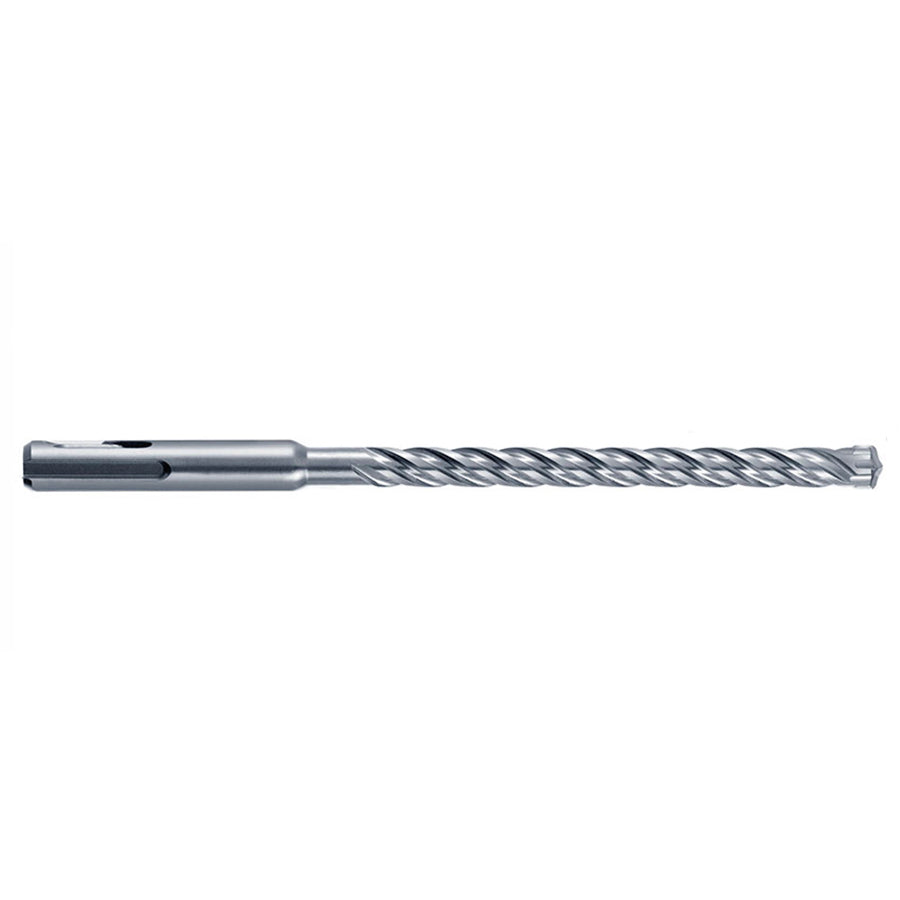

SDS PLUS Zentro 4 Cutter Drill Bits with Carbide Tip

$16.39
GST Excl. (Price including GST will be: $18.85 )

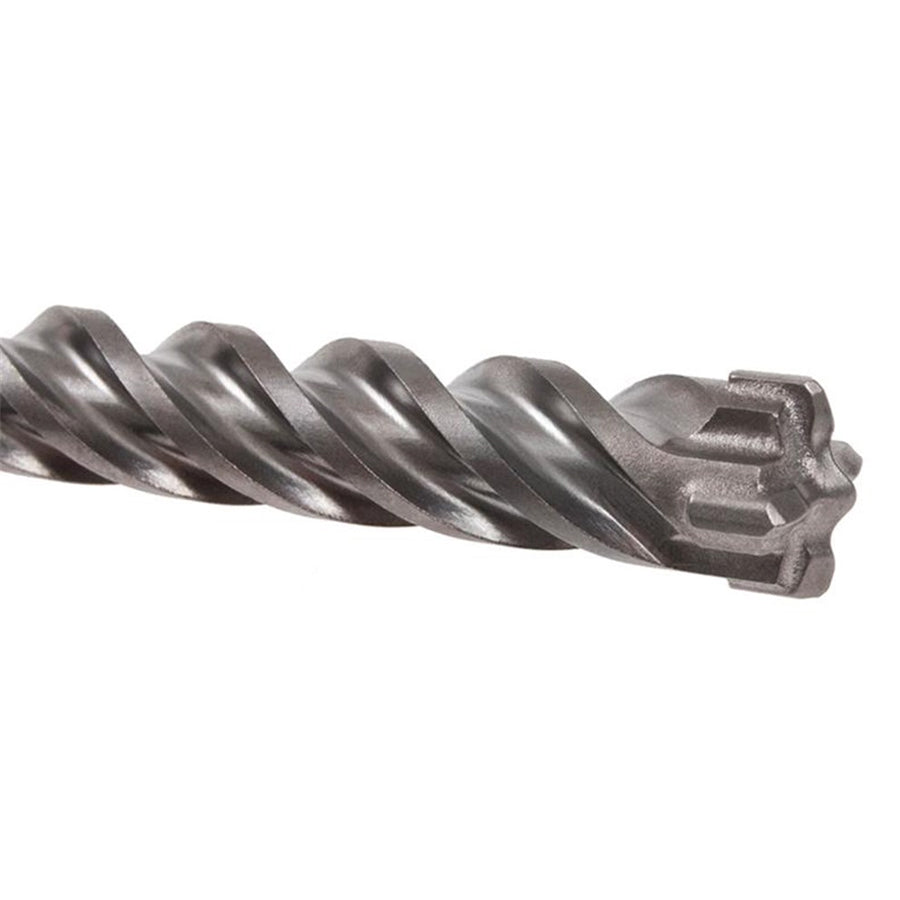

Dynamic drilling ability with secondary cutters protecting the drill bit in the event of reinforcement collision. The one-piece, solid carbide tip and patented reinforcing chamfering ensure low vibration and optimum drilling performance when drilling into reinforcing steel.

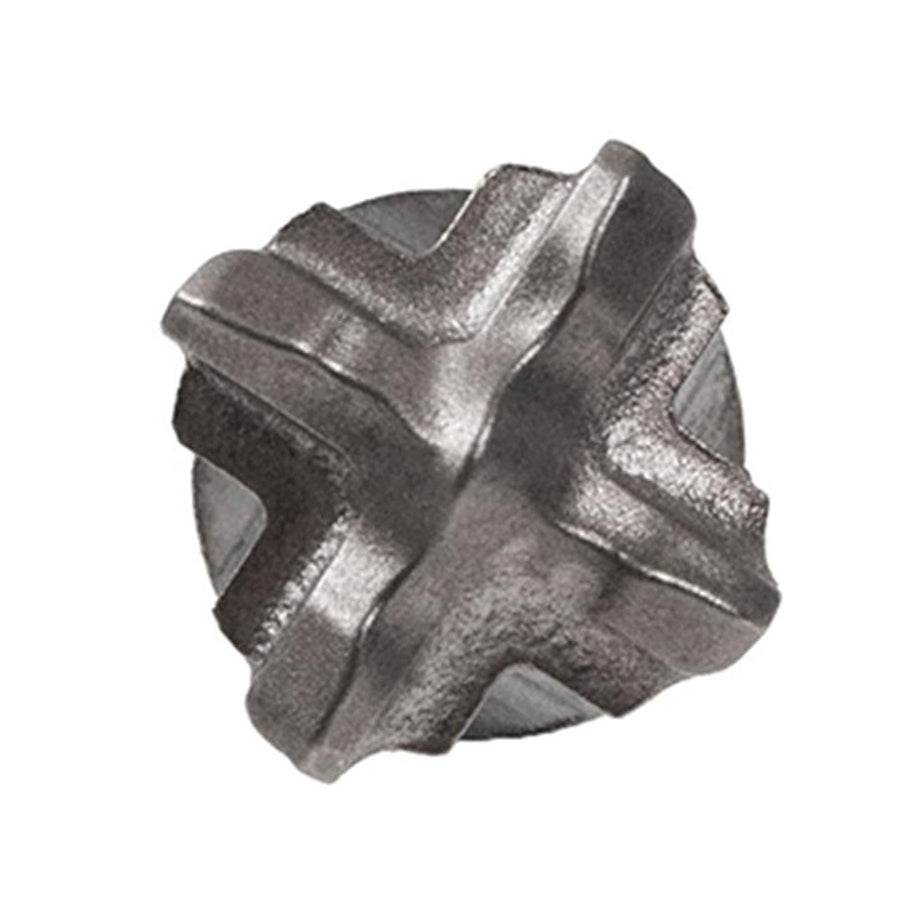

Thanks to optimum 4 x 90° symmetry, all four carbide cutting edges function evenly and do not seize up on hitting reinforcing steel. Centring tip for straight forward spot drilling with pinpoint accuracy.

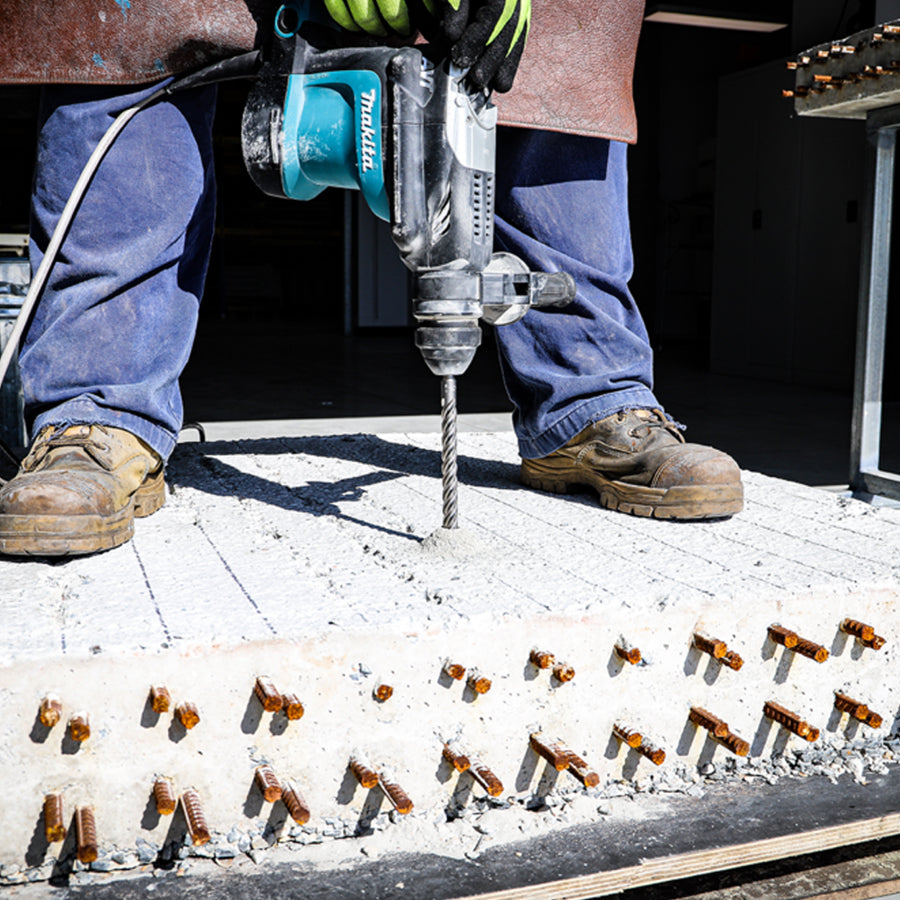

Penetrates through steel deck plate eg Bondek® and concrete in one easy process.


Code Diameter Overall Length Flute Length
SPZ050110 5mm 110mm 50mm
SPZ050160 5mm 160mm 100mm
SPZ055110 5.5mm 110mm 50mm
SPZ055160 5.5mm 160mm 100mm
SPZ060110 6mm 110mm 50mm
SPZ060160 6mm 160mm 100mm
SPZ060210 6mm 210mm 150mm
SPZ065160 6.5mm 160mm 100mm
SPZ065210 6.5mm 210mm 150mm
SPZ080160 8mm 160mm 100mm
SPZ080210 8mm 210mm 150mm
SPZ100160 10mm 160mm 100mm
SPZ100210 10mm 210mm 150mm
SPZ100260 10mm 260mm 200mm
SPZ120160 12mm 160mm 100mm
SPZ120210 12mm 210mm 150mm
SPZ120260 12mm 260mm 200mm
SPZ120310 12mm 310mm 250mm
SPZ120450 12mm 450mm 390mm
SPZ140260 14mm 260mm 200mm
SPZ140450 14mm 450mm 390mm
SPZ160260 16mm 260mm 200mm
SPZ160450 16mm 450mm 390mm
SPZ180250 18mm 250mm 190mm
SPZ180450 18mm 450mm 390mm
SPZ200250 20mm 250mm 190mm
SPZ200450 20mm 450mm 390mm
SPZ220250 22mm 250mm 190mm
SPZ220450 22mm 450mm 390mm
SPZ240250 24mm 250mm 190mm
SPZ240450 24mm 450mm 390mm
SPZ250250 25mm 250mm 190mm
SPZ250450 25mm 450mm 390mm
SPZ280250 28mm 250mm 190mm
SPZ280450 28mm 450mm 390mm
SPZ300250 30mm 250mm 190mm
SPZ300450 30mm 450mm 390mm
SPZ320450 32mm 450mm 390mm
